DN200 PN10 Corrosion Resistant EPDM Rubber Lined Dismantling Joint
Product meaning
The rubber-lined dismantling joints produced by our company are based on the original dismantling joint product structure.
By adding a special rubber lining inside the telescopic tube and the body, it avoids the problem of product non-wear resistance during use;
it effectively adapts to the connection and force transmission needs in various new industrial pipeline systems;
at the same time, the rubber lining used effectively reduces the application caused by wear and extends the comprehensive service life of the product.
Product Parameters
[Product name]: Double flange force transmission joint
[Product alias]: EPDM Lined Dismantling joint
[Product specifications]: [DN32mm-DN4000mm]
[Product pressure]: 0.6-2.5MPa
[Scope of application]: [Weak acid, weak alkali, weak corrosion, oil, hot water, cold water, etc.]
[Product material]: Carbon steel, ductile iron, stainless steel.
[Product color]: Blue, can be adjusted according to customer requirements.
[Working temperature]: -40 degrees to 80 degrees
Connection Data Table
| DN | PN10 | PN16 |
| D | K | Bolt holes | L1 | L2 | D | K | Bolt holes | | |
| Bolt | N-φd2 | Bolt | N-φd2 | L1 | L2 |
| DN40 | 150 | 110 | M16 | 4-19 | 180 | 330 | 150 | 110 | M16 | 4-19 | 180 | 330 |
| DN50 | 165 | 125 | M16 | 4-19 | 180 | 330 | 165 | 125 | M16 | 4-19 | 180 | 330 |
| DN65 | 185 | 145 | M16 | 4-19 | 180 | 330 | 185 | 145 | M16 | 4-19 | 180 | 330 |
| DN80 | 200 | 160 | M16 | 8-19 | 200 | 350 | 200 | 160 | M16 | 8-19 | 200 | 350 |
| DN100 | 220 | 180 | M16 | 8-19 | 200 | 350 | 220 | 180 | M16 | 8-19 | 200 | 350 |
| DN125 | 250 | 210 | M16 | 8-19 | 200 | 350 | 250 | 210 | M16 | 8-19 | 200 | 350 |
| DN150 | 285 | 240 | M20 | 8-23 | 200 | 350 | 285 | 240 | M20 | 8-23 | 200 | 350 |
| DN200 | 340 | 295 | M20 | 8-23 | 220 | 380 | 340 | 295 | M20 | 12-23 | 220 | 380 |
| DN250 | 400 | 350 | M20 | 12-23 | 220 | 380 | 400 | 355 | M24 | 12-28 | 230 | 400 |
| DN300 | 455 | 400 | M20 | 12-23 | 220 | 380 | 455 | 410 | M24 | 12-28 | 250 | 420 |
| DN350 | 505 | 460 | M20 | 16-23 | 230 | 400 | 520 | 470 | M24 | 16-28 | 260 | 440 |
| DN400 | 565 | 515 | M24 | 16-28 | 230 | 400 | 580 | 525 | M27 | 16-31 | 270 | 460 |
| DN450 | 615 | 565 | M24 | 20-28 | 250 | 420 | 640 | 585 | M27 | 20-31 | 270 | 460 |
| DN500 | 670 | 620 | M24 | 20-28 | 260 | 450 | 715 | 650 | M30 | 20-34 | 280 | 490 |
| DN600 | 780 | 725 | M27 | 20-31 | 260 | 460 | 840 | 770 | M33 | 20-37 | 300 | 520 |
| DN700 | 895 | 840 | M27 | 24-31 | 260 | 460 | 910 | 840 | M33 | 24-37 | 300 | 520 |
| DN800 | 1015 | 950 | M30 | 24-34 | 290 | 500 | 1025 | 950 | M36 | 24-40 | 320 | 550 |
| DN900 | 1115 | 1050 | M30 | 28-34 | 290 | 500 | 1125 | 1050 | M36 | 28-40 | 320 | 560 |
| DN1000 | 1230 | 1160 | M33 | 28-37 | 290 | 510 | 1255 | 1170 | M39 | 28-43 | 340 | 600 |
| DN1100 | 1340 | 1270 | M33 | 32-37 | 300 | 530 | 1355 | 1270 | M39 | 32-43 | 340 | 610 |
| DN1200 | 1455 | 1380 | M36 | 32-40 | 320 | 570 | 1485 | 1390 | M45 | 32-49 | 360 | 650 |

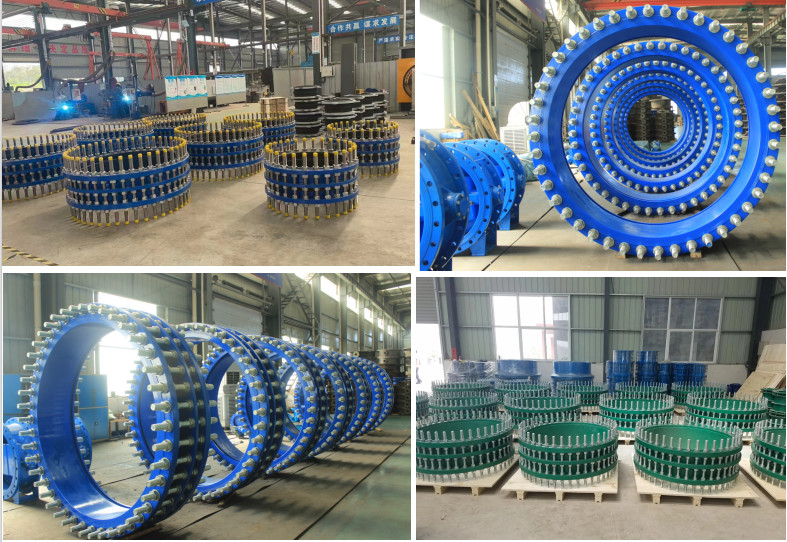

Factory Workshop
Application
Packing
Small-diameter dismantling joints (DN50-DN900) are wrapped with plastic film and then packed into fumigation-free wooden boxes;
large-diameter dismantling joints (DN1000-DN3000) are packaged according to the mode of transportation.
If transported by container, wrap it with plastic film, put it on a wooden pallet, and then load it into the container and secure it; if transported by bulk carrier, make a suitable iron frame according to the size.
