Ductile Iron Slotted Epoxy HDPE PVC PE DI Pipe Quick Special Flange Adapter
Product Introduction
A flange adapter is a fitting used to connect pipes, fittings, or equipment to tightly connect two or more parts together through flanges and flange pads. Flange adapters are usually made of metal, which has high strength and corrosion resistance, and is widely used in industrial, construction, and mechanical fields.
The material and purpose of the product
The main materials of the flange adapter include carbon steel, stainless steel, cast iron, etc. The flange adapter is made of carbon steel for general industrial environments, while stainless steel is suitable for corrosive environments. The main use of flange adapters includes connecting pipes, valves, pumps and other equipment to ensure the tightness and stability of the system.
Product parameters
| NO | Name | Material | Quantity |
| 1 | Gland | GJS500-7 | 1 |
| 2 | Rubber sealing ring | EPDM | 1 |
| 3 | Bolt | Q235B,SS304,SS316L, etc | N |
| 4 | Body | GJS500-7 | 1 |
| 5 | Plastic cap | Plastic | N |
| Nominal diameter | OD range (mm) | L(mm) | D(mm) | Bolt |
| Size | Quantity |
| DN50 | 59-72 | 75 | 165 | M12*130 | 2 |
| DN65 | 72-85 | 75 | 185 | M12*130 | 2 |
| DN80 | 88-103 | 76 | 185 | M12*130 | 4 |
| DN100 | 93-117 | 78 | 218 | M12*130 | 4 |
| DN100 | 105-122 | 78 | 218 | M12*130 | 4 |
| DN100 | 108-128 | 78 | 218 | M12*130 | 4 |
| DN125 | 125-140 | 78 | 250 | M12*130 | 4 |
| DN125 | 132-146 | 78 | 250 | M12*130 | 4 |
| DN125 | 138-153 | 78 | 250 | M12*130 | 4 |
| DN150 | 155-175 | 80 | 272 | M12*130 | 4 |
| DN150 | 158-182 | 80 | 272 | M12*130 | 4 |
| DN175 | 192-210 | 85 | 312 | M12*130 | 4 |
| DN200 | 218-235 | 85 | 335 | M12*130 | 4 |
| DN225 | 235-252 | 85 | 355 | M12*130 | 4 |
| DN225 | 250-267 | 85 | 405 | M12*130 | 4 |
| DN250 | 265-280 | 90 | 405 | M12*130 | 6 |
| DN250 | 272-289 | 90 | 405 | M12*130 | 6 |
| DN300 | 315-332 | 90 | 460 | M12*130 | 6 |
| DN300 | 322-339 | 90 | 460 | M12*130 | 6 |
| DN350 | 351-368 | 110 | 510 | M16*180 | 8 |
| DN350 | 374-391 | 110 | 510 | M16*180 | 8 |
| DN350 | 386-415 | 110 | 510 | M16*180 | 8 |
| DN400 | 400-429 | 110 | 580 | M16*180 | 8 |
| DN400 | 410-436 | 110 | 580 | M16*180 | 8 |
| DN400 | 418-435 | 110 | 580 | M16*180 | 8 |
| DN400 | 425-442 | 110 | 580 | M16*180 | 8 |
| DN450 | 455-472 | 115 | 640 | M16*180 | 10 |
| DN450 | 476-493 | 115 | 640 | M16*180 | 10 |
| DN500 | 500-532 | 120 | 690 | M16*180 | 10 |
| DN500 | 527-544 | 120 | 690 | M16*180 | 10 |
| DN600 | 600-630 | 130 | 820 | M16*180 | 10 |
| DN600 | 630-647 | 130 | 820 | M16*180 | 10 |
| DN700 | 738 | 150 | 860 | M16*180 | 12 |
| DN800 | 842 | 150 | 975 | M16*180 | 12 |
| DN900 | 945 | 150 | 1075 | M16*180 | 14 |
| DN1000 | 1048 | 150 | 1205 | M16*180 | 14 |
| DN1100 | 1152 | 150 | 1305 | M16*180 | 16 |
| DN1200 | 1265 | 150 | 1435 | M16*180 | 16 |
| DN1400 | 1462 | 150 | 1635 | M16*180 | 18 |
| DN1500 | 1565 | 150 | 1750 | M16*180 | 18 |
| DN1600 | 1668 | 150 | 1860 | M16*180 | 20 |
Features
1. Flexibility: The flange adapter can easily connect different standard or size flanges, increasing the flexibility of the piping system.
2. Economical: In the case that the entire flange system does not need to be replaced, the connection can be realized through the flange adapter, which saves costs.
3. Sealing: Flange adapters usually use high-quality sealing gaskets to ensure the tightness of the joints.
4. Stability: The flange adapter is bolted to ensure the stability of the connection.
Product application scenarios
Flange adapters are widely used in various industrial fields, such as chemical, petroleum, pharmaceutical, food, etc. They ensure the tightness and stability of the piping system, and are suitable for high-temperature and high-pressure environments to meet different industrial needs.

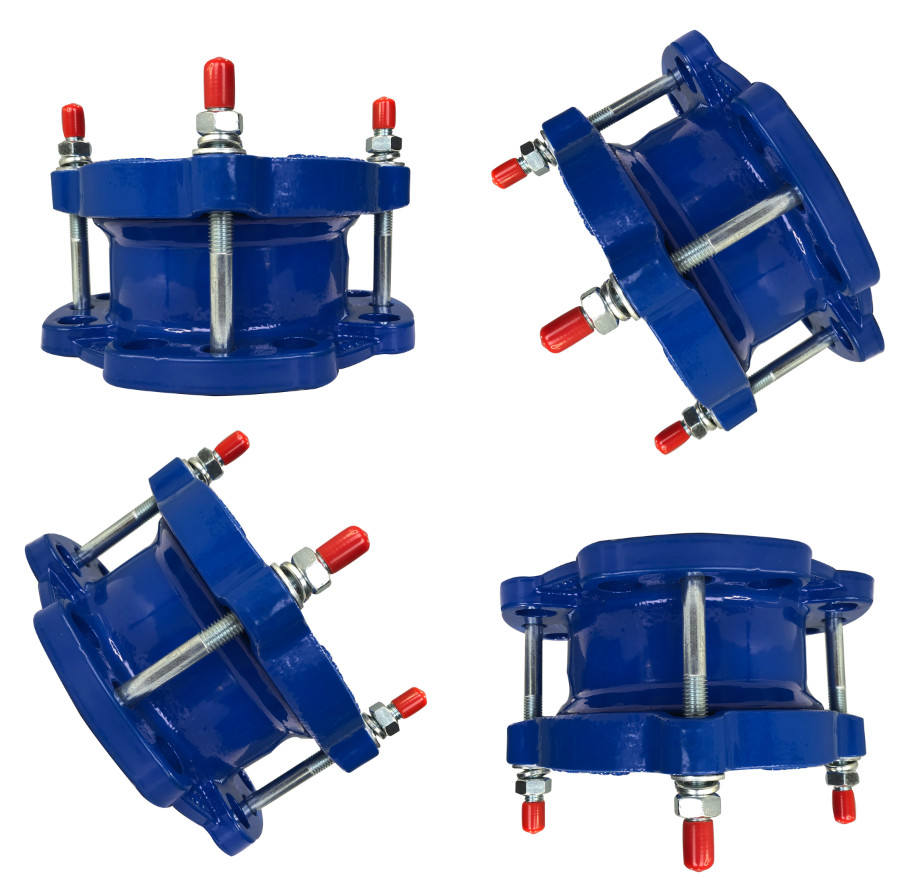

Product display from different angles
Inventory display
Related Products

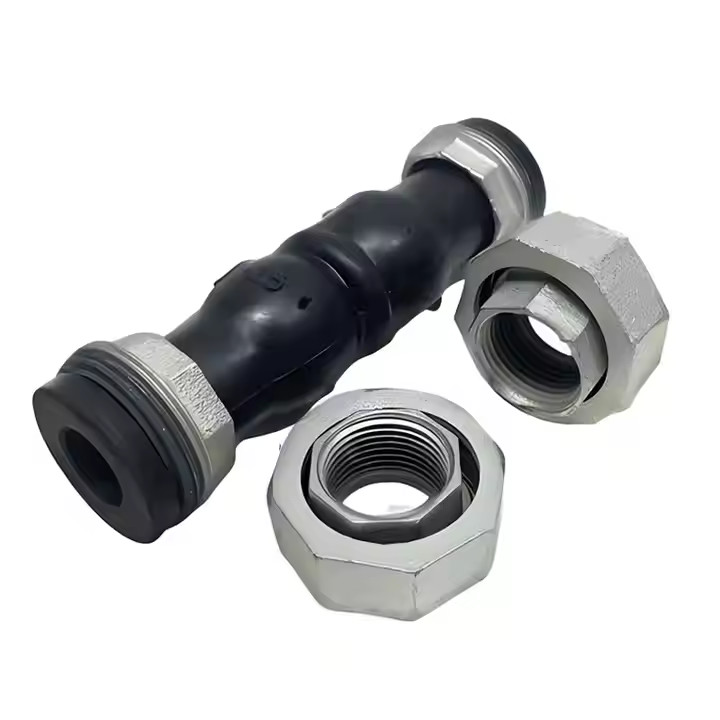

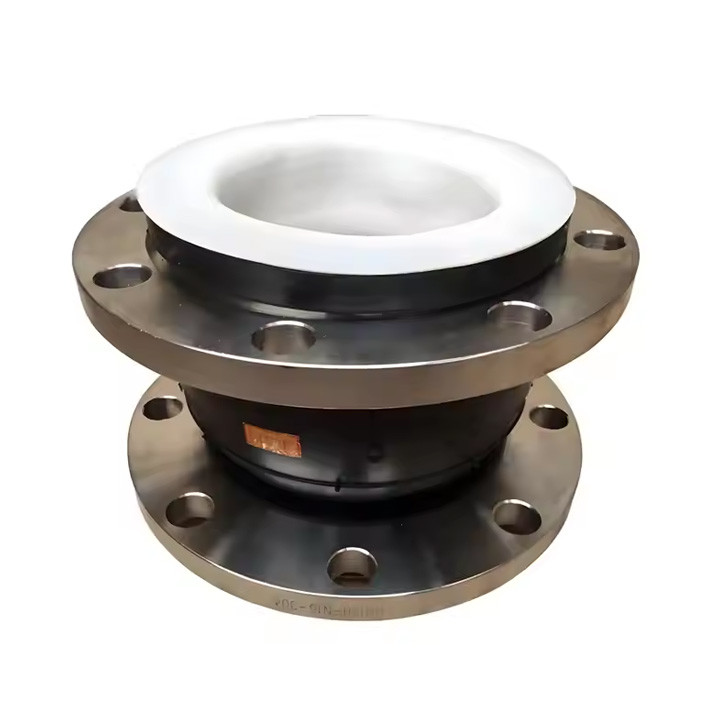

D-type large deflection Universal coupling joint Union threaded PTFE rubber joint
