DN125 PN16 High Pressure Repair Clamp Quick Connect Locking Fittings
Product Introduction
FCE Connection Repair is mainly used in the connection of new pipeline and rapid repair of pipeline leakage, it can be used in the case of non-stop pressure, without changing the pipeline, the aging, rust and corrosion caused by the pipeline grit, fracture and other cases of rapid repair, easy to install, high construction efficiency, no need for special tools can be constructed.
Product Features
1. Easy to operate
2. Conducive to construction safety
3. The system has good stability and easy maintenance
4. The price is cheaper.
Product Parameters

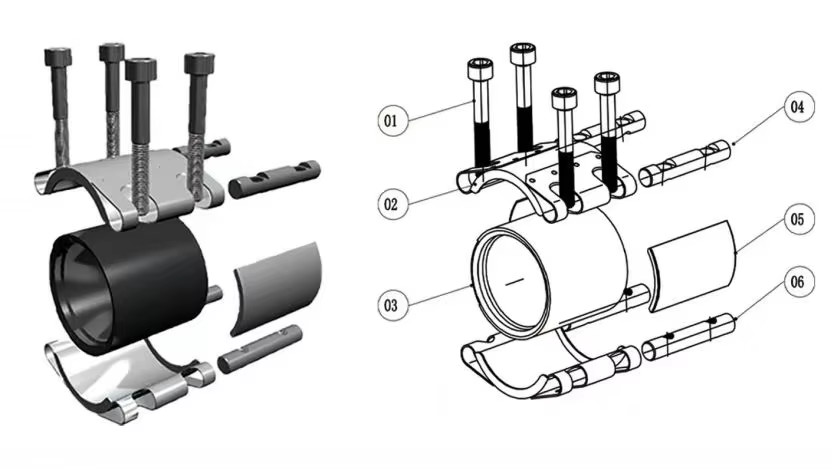

| NO | NAME | MATERIAL | QUANTITIES |
| 1 | Bolt | SS304 | N |
| 2 | Shell steel plate | SS304 | 2 |
| 3 | Rubber sleeve | EPDM | 1 |
| 4 | Screw hole pull rod | SS304 | 1 |
| 5 | Guard board | SS304 | 2 |
| 6 | Nut tie rod | SS304 | 1 |
| Pipe OD (mm) | Pipe Diameter Range(mm) | Pressure | Dimensions | Bolt | Bolt torque |
| A | L1 | L2 | D |
| 42 | 42-44 | 16 | 10 | 57 | 100 | 65 | 6 | 15 |
| 44.5 | 44-45.1 | 16 | 10 | 57 | 100 | 65 | 6 | 15 |
| 48.6 | 47-49 | 16 | 10 | 57 | 100 | 70 | 6 | 15 |
| 54 | 53.6-54.6 | 16 | 10 | 57 | 100 | 70 | 8 | 30 |
| 57 | 56.3-57.7 | 16 | 10 | 57 | 100 | 80 | 8 | 30 |
| 60.3 | 59-62 | 16 | 10 | 80 | 139 | 85 | 8 | 30 |
| 63 | 62.2-63.9 | 16 | 10 | 57 | 139 | 85 | 8 | 30 |
| 76.1 | 75-78 | 16 | 10 | 57 | 139 | 100 | 8 | 30 |
| 79.9 | 78.8-80.8 | 16 | 10 | 57 | 139 | 100 | 8 | 30 |
| 88.9 | 88-92 | 16 | 10 | 107 | 203 | 110 | 8 | 30 |
| 108 | 106-110 | 16 | 10 | 107 | 203 | 130 | 8 | 50 |
| 110 | 108.9-111.2 | 16 | 10 | 107 | 203 | 130 | 8 | 50 |
| 114.3 | 112-116 | 16 | 10 | 107 | 203 | 135 | 8 | 50 |
| 118 | 116.6-119.2 | 16 | 10 | 107 | 203 | 140 | 8 | 50 |
| 125 | 123.6-126.5 | 16 | 10 | 107 | 203 | 150 | 8 | 50 |
| 133 | 131.5-134.4 | 16 | 10 | 107 | 203 | 160 | 8 | 50 |
| 140 | 137-143 | 16 | 10 | 116 | 203 | 165 | 12 | 50 |
| 159 | 157-161 | 16 | 10 | 116 | 203 | 185 | 12 | 80 |
| 165.2 | 163.3-166.7 | 16 | 10 | 116 | 203 | 190 | 12 | 80 |
| 168 | 166-170 | 16 | 10 | 116 | 203 | 195 | 12 | 80 |
| 170 | 168.2-171.9 | 16 | 10 | 116 | 203 | 195 | 12 | 80 |
Tips:The above data is only part of the data, if you need a special size, please contact us.
Scenarios and Advantages of FCE Connection Repair
FCE Connection Repair is mainly used to repair sand holes, air holes, transverse or longitudinal breaks and other problems in pipelines, which is widely used in the repair of water supply and drainage and other liquid and gas pressure pipelines. Its structure is simple and easy to use, which can save labor and time, and save costs. In addition, FCE Joint Repairer is suitable for various pipeline types, including water supply and drainage pipelines, pressure pipelines and so on.
Specific characteristics of the media for which the FCE connection repair is used
1. Polyvinyl chloride (PVC): With excellent chemical stability, corrosion resistance and weather resistance, commonly used in the transportation of acid and alkali substances, corrosive gases and high salt-containing solutions.
2. Polyethylene (PE): Has good chemical resistance and mechanical strength, suitable for a variety of chemical media.
3. Polypropylene (PPR): Strong corrosion resistance, suitable for a variety of chemical environments.

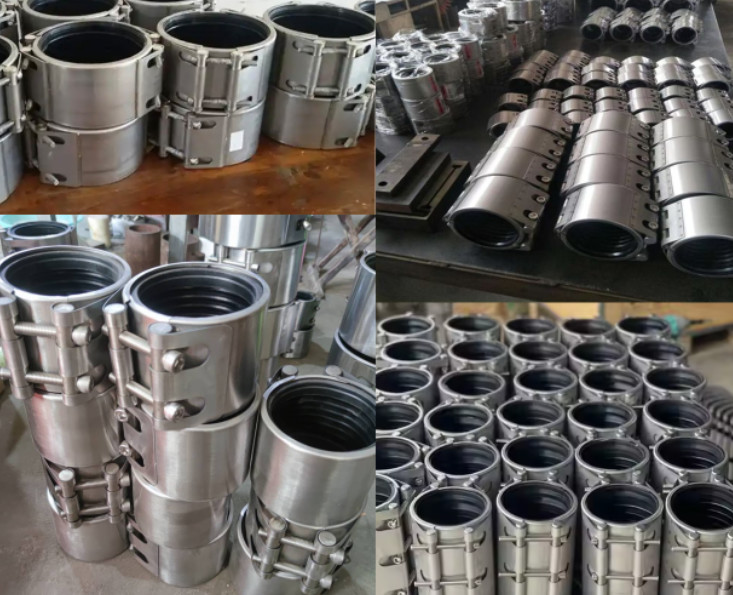

Inventory Display
